Is the server slow?

A dashboard showed that the p99 response time for an image upload API had exceeded 10 seconds. The request came from overseas.
This API receives images uploaded by users as POST multipart/form-data requests.

That raises an awkward question.

Is that 10 seconds caused by our code or server-side work (the database, external APIs, or heavy parsing), or is the server simply waiting while a user uploads a large image over a slow network? It was not clear.

However, the latency metric we were looking at did not distinguish between these two cases.
I thought that without knowing the cause, we would not be able to respond properly later.

This post covers what happens when a file is uploaded, how the flow works over the network, and how to measure the time in code.

Why a slow upload gets mistaken for "server request time"

When an HTTP server receives a request, it first reads only the Request Line and headers, then passes control to the application.

This is intentional in the HTTP protocol: when the server only needs metadata for tasks such as authentication and authorization, routing and redirection, or rejecting a request based on its size (Content-Length), it avoids unnecessary loading.

When HTTP reads the body

POST /api/upload HTTP/1.1
Content-Type: multipart/form-data; boundary=----X
Content-Length: 20971520
                             ← 빈 줄. 헤더 끝.
<...body...>

The body remains in the socket and is read when the application requests it (getParts(), getInputStream()).

For multipart requests, Spring MVC does this in DispatcherServlet:

protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
    HttpServletRequest processedRequest = request;
    ...
    boolean multipartRequestParsed = false;
    try {
        ModelAndView mv = null;
        Exception dispatchException = null;

        try {
           processedRequest = checkMultipart(request);
           multipartRequestParsed = (processedRequest != request);
           ...
    }
    ...
}

The body is read during the checkMultipart method.

That body read is the problem. Once it is called, Tomcat's worker thread starts reading the body bytes directly from the socket.

• An approximate flow for reading body bytes

1. request.getInputStream
2. CoyoteInputStream
3. IdentityInputFilter
4. Http11InputBuffer
5. NioChannel
6. OS read() system call

The code that directly performs the read looks like this:

// NioSocketWrapper#fillReadBuffer() — 블로킹 read 구현부

synchronized (readLock) {
    n = getSocket().read(buffer);
    if (n == -1) {
        throw new EOFException();
    } else if (n == 0) {
        if (!readBlocking) {
            readBlocking = true;
            registerReadInterest();
        }
        try {
            if (timeout > 0) {
                startNanos = System.nanoTime();
                readLock.wait(timeout);
            } else {
                readLock.wait();
            }
        } catch (InterruptedException ignore) {
       }
    }
}
return n;

The following kind of code is involved.

The implementation may differ between classes. The code above is for reference.

• If there are bytes in the kernel buffer, they are copied and returned immediately.
• If there are no bytes in the kernel buffer:

1. read returns 0
2. Register OP_READ with the Poller

@Override
public void registerReadInterest() {
    getPoller().add(this, SelectionKey.OP_READ);
}

3. The worker thread waits on a LOCK: readLock.wait; it uses no CPU, but the thread remains occupied.

It waits for more bytes to arrive. This repeats until the amount specified by Content-Length has been read.

=> In other words, after entering DispatcherServlet, reading the body delays both the worker thread and the request time.

When the metric measures time

So, when is this request time measured?

In Spring Web, ServerHttpObservationFilter currently measures the metric.

try (Observation.Scope scope = observation.openScope()) {
    onScopeOpened(scope, request, response);
    filterChain.doFilter(request, response);
}
catch (Exception ex) {
    observation.error(unwrapServletException(ex));
    response.setStatus(HttpStatus.INTERNAL_SERVER_ERROR.value());
    throw ex;
}
finally {
   Throwable error = fetchException(request);
   if (error != null) {
      observation.error(error);
   }
   observation.stop();
}

When the filter is entered, it opens the Observation's Scope and runs the downstream components (the remaining filters and DispatcherServlet) through filterChain.doFilter. If an error occurs, it records it in the Observation, then stops the measurement in finally (observation.stop).

In other words, in Tomcat it measures

from when the Request Line and headers are read and passed to the filters -> until control returns to the filters

That means the time spent reading the body in DispatcherServlet is stored in the metric in full as well.

So this single metric cannot distinguish between a slow server and a slow client upload.

Why not just switch to presigned uploads?

The common answer at this point is to stop having the server receive the body and require the client to upload directly to storage using a presigned URL.

Because the server no longer reads the image bytes as part of the request, the problem itself disappears.

However, we had a case where we could not use that approach.

A particular enterprise's internal network blocked both the S3 storage host and the PUT method.
Presigned uploads were blocked twice over. We confirmed that POST requests to our domain, however, were allowed through.

As a result, we had no choice but to keep a fallback structure in which the server receives multipart POST requests synchronously.

Implementing the profiler

So, when receiving requests synchronously, we decided to build a profiler that could distinguish whether the problem was on the server side or the client side.

Filter or interceptor?

Should this logic start in a Filter or an Interceptor?

This time, it is a Filter. As mentioned earlier, the multipart body is read near the top of DispatcherServlet.

processedRequest = checkMultipart(request);
...

HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());
...
if (!mappedHandler.applyPreHandle(processedRequest, response)) {
    return;
}
mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
...

Therefore, we need to start measuring in a Filter to measure the time before the multipart body is read in a meaningful way.

public class FilterChainStartFilter extends OncePerRequestFilter {

    @Override
    protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain) throws ServletException, IOException {
        setFilterStartTimestamp(request);
        filterChain.doFilter(request, response);
    }

    private void setFilterStartTimestamp(HttpServletRequest req) {
        var time = System.currentTimeMillis();
        req.setAttribute(RequestConstant.FILTER_START_ATTR, time);
    }
}

public class FilterChainEndFilter extends OncePerRequestFilter {

    @Override
    protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain) throws ServletException, IOException {
        setFilterEndTimestamp(request);
        filterChain.doFilter(request, response);
    }

    private void setFilterEndTimestamp(HttpServletRequest req) {
        var time = System.currentTimeMillis();
        req.setAttribute(RequestConstant.FILTER_END_ATTR, time);
    }
}

public class WebConfig implements WebMvcConfigurer {

    private static final int START_ORDER = 1;
    // 마지막 필터의 값
    private static final int LAST_ORDER = 5;

    @Bean
    public FilterRegistrationBean<FilterChainStartFilter> FilterChainStartFilterRegistrationBean() {
        var registrationBean = new FilterRegistrationBean<FilterChainStartFilter>();
        registrationBean.setFilter(new FilterChainStartFilter());
        registrationBean.setOrder(START_ORDER);
        return registrationBean;
    }

    @Bean
    public FilterRegistrationBean<FilterChainEndFilter> filterChainEndFilterRegistrationBean() {
        var registrationBean = new FilterRegistrationBean<FilterChainEndFilter>();
        registrationBean.setFilter(new FilterChainEndFilter());
        registrationBean.setOrder(LAST_ORDER);
        return registrationBean;
    }
}

Measuring from the very beginning of the filter to the very end of the filter lets us check whether there was a bottleneck or problem in the filter logic.

The measured intervals can be extended as needed.

• To measure entry into the controller, calculate it at the entry point with an annotation and AOP.
• To measure when the request is completely finished, calculate it in the interceptor's afterCompletion.

Interceptor timing code

public class InterceptorChainStartInterceptor implements HandlerInterceptor {

    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) {
        request.setAttribute(INTERCEPTOR_START_ATTR, System.currentTimeMillis());
        return true;
    }
}

public class WebConfig implements WebMvcConfigurer {

    private final InterceptorChainStartInterceptor chainStartInterceptor;

    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        WebMvcConfigurer.super.addInterceptors(registry);
        registry.addInterceptor(chainStartInterceptor);
    }
}

Time calculation code

@Slf4j
@Component
public class RequestTimingInterceptor implements HandlerInterceptor {

    private static final long SLOW_THRESHOLD_MS = 3000;
    private static final double KILO_BYTE = 1024.0;
    private static final double SECOND = 1000.0;

    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) {
        checkSlowRequest(request);
        return true;
    }

    private void checkSlowRequest(HttpServletRequest request) {
        Long filterStartMs = (Long) request.getAttribute(RequestConstant.FILTER_START_ATTR);
        Long filterEndMs = (Long) request.getAttribute(RequestConstant.FILTER_END_ATTR);
        if (filterStartMs == null) return;
        if (filterEndMs == null) return;

        long now = System.currentTimeMillis();

        long total = now - filterStartMs;
        if (total <= SLOW_THRESHOLD_MS) return;


        long filterChainMs = filterEndMs - filterStartMs;
        // 본문을 읽는 시간 + DispatcherServlet 내부 작업(핸들러 매핑)
        long bodyReadMs = now - filterEndMs;

        int contentLength = request.getContentLength();

        log.warn("총시간={}ms | 필터체인={}ms | 바디읽기={}ms | uri={} | 크기={} | 처리량={}", total, filterChainMs, bodyReadMs, request.getRequestURI(), formatSize(contentLength), formatThroughput(contentLength, bodyReadMs));
    }

    private static double toKbPerSec(int contentLength, long bodyReadMs) {
        return (contentLength / KILO_BYTE) / (bodyReadMs / SECOND);
    }

    private static String formatThroughput(int contentLength, long bodyReadMs) {
        if (bodyReadMs <= 0 || contentLength <= 0) {
            return "N/A";
        }
        return "%.1fKB/s".formatted(toKbPerSec(contentLength, bodyReadMs));
    }

    private static String formatSize(int bytes) {
        if (bytes < 0) return "unknown";
        if (bytes < KILO_BYTE) return bytes + "B";
        if (bytes < KILO_BYTE * KILO_BYTE) return "%.1fKB".formatted(bytes / KILO_BYTE);
        return "%.1fMB".formatted(bytes / (KILO_BYTE * KILO_BYTE));
    }
}

Now all that remains is to assemble the measured times.

• From the beginning to the end of the filter chain
• From the start of the interceptor to the present

Calculate throughput appropriately.

Aside: actual processing time

What if we want to see the pure logic-processing time in the metric, excluding the time spent reading the body?

@Component
@RequiredArgsConstructor
public class RequestTimingInterceptor implements HandlerInterceptor {

    private static final String PROCESSING_SAMPLE_ATTR = "__processingSample";

    private final MeterRegistry meterRegistry;

    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) {
        checkSlowRequest(request);
        request.setAttribute(PROCESSING_SAMPLE_ATTR, Timer.start(meterRegistry));
        return true;
    }

     @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) {
        if (!(request.getAttribute(PROCESSING_SAMPLE_ATTR) instanceof Timer.Sample sample)) {
            return;
        }
        sample.stop(Timer.builder("app.request.processing")
                .description("업로드 전송을 제외한 순수 서버 처리 시간")
                .tag("uri", resolveUriTag(request))
                .tag("method", request.getMethod())
                .tag("status", String.valueOf(response.getStatus()))
                .register(meterRegistry));
    }

    private static String resolveUriTag(HttpServletRequest request) {
        Object pattern = request.getAttribute(HandlerMapping.BEST_MATCHING_PATTERN_ATTRIBUTE);
        return (pattern != null) ? pattern.toString() : "UNKNOWN";
    }
}

With Timer, simply start recording in preHandle and stop measuring in afterCompletion. (So Easy)

Conclusion

Based on code like this, we can identify what was wrong with a slow request:

WARN  RequestTimingInterceptor - 총시간=5621ms | 필터체인=0ms | 바디읽기=5621ms | uri=/api/request | 크기=132.3KB | 처리량=23.5KB/s
WARN  RequestTimingInterceptor - 총시간=25126ms | 필터체인=0ms | 바디읽기=25126ms | uri=/api/request | 크기=132.3KB | 처리량=5.3KB/s
WARN  RequestTimingInterceptor - 총시간=3699ms | 필터체인=1ms | 바디읽기=3698ms | uri=/api/request | 크기=4.2MB | 처리량=1156.3KB/s
WARN  RequestTimingInterceptor - 총시간=46831ms | 필터체인=0ms | 바디읽기=46831ms | uri=/api/request | 크기=3.2KB | 처리량=0.1KB/s

• If the filter time is long, the problem is likely on the server side.
• If throughput is low, the transfer may be delayed on the client side or somewhere along the network path.
• Even if the total time is long, high throughput suggests the problem may be on the server side: the image arrived quickly, but parsing, temporary-file handling, mapping, or similar work was slow.

Even for requests that each take the same 10 seconds, splitting the metric into intervals can reveal what those 10 seconds represent without reproducing the issue.
When a metric blurs the cause, splitting it apart can recover that cause. That is what this profiler does.

Aside: why are overseas requests slow?

Of course, requests traveling from overseas to Seoul are naturally slower.
Still, I was curious about why the measured throughput varied so widely (0.1KB/s, 1156.3KB/s, 5.3KB/s).

I took a brief look at why they might differ.

Of course, the real internet is more complicated than this.
There are bottleneck-link bandwidth, congestion windows, proxies, and so on.
This section covers only the basics of TCP communication.

1. Why are overseas requests so slow? (23.5KB/s)
2. Why does the same 132KB take 5 seconds one time and 25 seconds another time?
3. Why did 3.2KB take as long as 46 seconds? (0.1KB/s)

TCP has an answer for all three.

1. Throughput is determined by RTT, not bandwidth

• RTT: Round Trip Time, the time a network request takes to travel from the starting point to the destination and back.
• Window: the maximum amount that can be sent and received at once.

TCP does not simply send data as fast as possible.
It sends up to the size of the window, waits for an acknowledgment (ACK) that it was received, and then sends more.

=> In other words, throughput ≈ window ÷ RTT.

Even with the same window, an RTT that is 25 times longer produces a 25-fold difference in speed. (The link itself stops being the limiting factor.)
The time spent waiting for the ACK to make the round trip constrains the speed.

On top of this, TCP has a feature called slow start.
For example, it does not start at full speed; it doubles the window on each RTT.

• Domestic (10ms): reaches full speed in a few dozen milliseconds.
• Across the Pacific (250ms): one RTT takes 250ms, so reaching a steady state alone takes several seconds.

A small upload can finish before it has had time to build up speed. That is one reason its measured throughput is low.

2. Why does the same 132KB take 5 seconds one time and 25 seconds another time?

Why does the time differ when the size is the same?

Transfer speed is not a constant. It changes with every transfer.
And TCP's congestion control controls that speed.

When a packet is lost, TCP assumes, "I must have sent too quickly," cuts the window in half, and then recovers slowly.

Common causes of packet loss include:

• Data sent over wireless (Wi-Fi) can have corrupted frames because of radio interference or a weakened signal.
• A router can become overloaded, fill its queue, and drop packets.

In addition, a short transfer such as 132KB can finish before slow start is over. (Long transfers regress toward an average to some extent.)
It is affected almost entirely by luck during the first few RTTs. The shorter the transfer, the larger the variation can be.

=> Loss is effectively random. One transfer may be clean, while the previous one may have been unlucky.

3. 3.2KB taking 46 seconds?

3KB is only a few TCP packets.
Even over a very narrow link, once transmission starts, it should arrive within one RTT.

So in what situation could 46 seconds occur?

This is also a characteristic of TCP.

• TCP sends and waits to guarantee that requests are delivered in order.
• If an acknowledgment (ACK) does not arrive, it waits and sends the data again (retransmission).
• If the ACK continues not to arrive, it keeps increasing the retransmission wait time (for example, using exponential backoff).

I do not know this part precisely myself, but

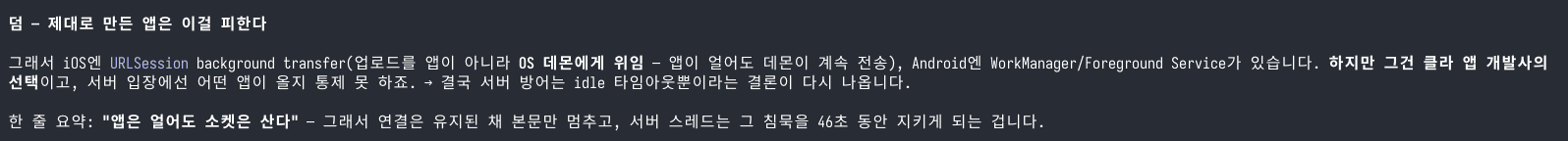

mobile operating systems may suspend background apps to save battery.
The app's upload loop can stop midway, which could cause exponential-backoff delays to grow or the request to be lost.

=> A throughput of 0.1KB/s may indicate not a slow connection, but a pause.

Because of network speed and flows like these, server logs can show widely varying throughput. The end!
